Grooves
From M.U.G.E.N Wiki
Contents |
Mode selection
(groove selection) (during intro)
Note: This is for two modes, if you wish more than two grooves, then use this code instead of the first 3 sets of code
[state 190, choose var];starts round with a random groove. type = VarRandom trigger1 = time = 0 v = 4 range = 0,2; 2 can be what ever you want it to be, 2 is three grooves [state 190] type = varadd trigger1 = command = "up" v=4 vaule = ifelse(var(4)=2,-2,1);2 must be the same number as above [state 190] type = varadd trigger1 = command = "down" v=4 vaule = ifelse(var(4)=0,2,-1);this will cycle to the last groove if it is on the first groove (opposite for above) and you will want an explod with an id specific to that explod for each extra groove you have (make sure you have a remove explod for it aswell)
[state 190, choose var];starts round with a random groove. type = VarRandom trigger1 = time = 0 v = 4 range = 0,1 [state 190] type = varset trigger1 = command = "up" v=4 vaule = 0 [state 190] type = varset trigger1 = command = "down" v=4 vaule = 1 [State 190, Explod] type = Explod trigger1 = var(4)=0 trigger1 = numexplod(18)=0 anim = 137 ID = 18 pos = 0,0 postype = p1 ;p2,front,back,left,right facing = 1 vfacing = 1 bindtime = 0 vel = 0,0 accel = 0,0 random = 0,0 removetime = -2 supermove pausemove scale = 1,1 sprpriority = 0 ontop = 0 shadow = 0,0,0 ownpal = 0 removeongethit = 0 [State 0, RemoveExplod] type = RemoveExplod trigger1 = var(4)=1 id = 17 [State 190, Explod] type = Explod trigger1 = var(4)=1 trigger1= numexplod(17)=0 anim = 138 ID = 17 pos = 0,0 postype = p1 ;p2,front,back,left,right facing = 1 vfacing = 1 bindtime = 0 vel = 0,0 accel = 0,0 random = 0,0 removetime = -2 supermove pausemove scale = 1,1 sprpriority = 0 ontop = 0 shadow = 0,0,0 ownpal = 0 removeongethit = 0 [State 0, RemoveExplod] type = RemoveExplod trigger1 = var(4)=0 id = 18
example of two explodes you might want to use
also need to delete the variable reset at the end of the round in the common1

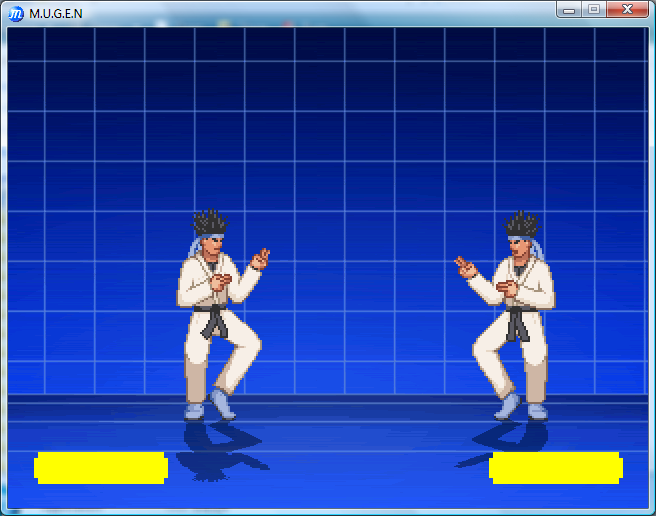

Adding a groove bar
Getting Ready
Several things First you will need a bg for you bar
You will also need a bar
Make sure you have a variable set aside for this
Setting up your sprites
You will want an axis in your sff for the bg to be on the middle left
and for the axis on the bar itself to be on the middle left
Make sure you set up a propper animation for each of the two sprites
The actual code
In the -2 state add an explod
;this one will be used if the second groove is chosen [state -2] type = Explod trigger1 = var(4)=1 trigger1= numexplod(17)=0 trigger1 = numexplod(27)=0 trigger1 = teamside=1 anim = 238 ;lets use this animation for the grooves bg for now ID = 27 pos = 10,220 postype =left ;p2,front,back,left,right facing = 1 vfacing = 1 bindtime = -1 scale = 1,1 sprpriority =999 removetime=-1 ;and for the bar lets use something three pixel over so it will fit ;you will also need to lower the bar abit, lets say five pixels [state -2] type = Explod trigger1 = var(4)=1 trigger1 = numexplod(27)=1 trigger1= teamside=1 anim = 338 ;lets use this animation for the grooves fill bar for now ID = 37 pos = 13,215 postype = left facing = 1 vfacing = 1 bindtime = -1 scale = 1,1 sprpriority = 9999 removetime=-1 ;----------------------------------------------------------------------------------- This section is a repeat except for the fact it will allow p2 to use the bar on his/her side ;----------------------------------------------------------------------------------- [state -2] type = Explod trigger1 = var(4)=1 trigger1= numexplod(17)=0 trigger1 = numexplod(27)=0 trigger1 = teamside=2 anim = 238 ID = 27 pos = -10,220 postype =right ;p2,front,back,left,right facing = -1 vfacing = 1 bindtime = -1 scale = 1,1 sprpriority = 999 removetime=-1 [state -2] type = Explod trigger1 = var(4)=1 trigger1 = numexplod(27)=1 trigger1= teamside=2 anim = 338 ID = 37 pos = -13,215 postype = right facing = -1 vfacing = 1 bindtime = -1 scale = 1,1 sprpriority = 9999 removetime=-1 ;----------------------------------------------------------------------------------- ;this is where the new variable comes in. [state -2] type = varset trigger1 = 1 fv=5 value = (100*power/const(data.power))*0.01;<<<<<Note 1>>>>> [state -2];or 3 type = modifyexplod trigger1 = var(4)=1 trigger1 = numexplod(27)=1 ID=37 ;this modify's the powerbar scale =fvar(5),1
;or combine the previous two parts and have less work for yourself to do, just put (power/3000) in place of fvar(5)
